DMMClass Class Reference

Base class for a Multimeter class (Protokoll version). More...

#include <dmmclass.h>

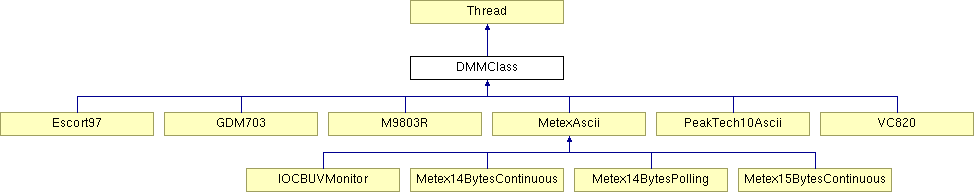

Inheritance diagram for DMMClass:

Thread Escort97 GDM703 M9803R MetexAscii PeakTech10Ascii VC820 IOCBUVMonitor Metex14BytesContinuous Metex14BytesPolling Metex15BytesContinuous List of all members.

Public Member Functions

 DMMClass ()
virtual ~DMMClass ()
Port::Error open (const std::string &config)
 Open the port.
virtual Port::Error close ()=0
 Close the port.
void setNumValues (int num)
 Set number of values this partucular multimeter provides.
int numValues ()
 Return number of values this partucular multimeter provides.
std::string mode (int i=0)
 The current measurement mode.
std::string unit (int i=0)
 String representation of the unit.
double value (int i=0)
 The measured value.
bool hasValue ()
 Do we have a measurement already?
bool overflow ()
 An overflow happened.
bool lowBat ()
 Battery is low.
void setConsoleLogging (bool on)
bool timeout () const
 Check if there was a timeout.
int start ()
 Start the thread.
void wait ()
 Wait for the thread to finish (no timeout!).
void stop ()
 Gracefully stop the thread.
void quit ()
 Forcibly stop thread.
bool running () const
 Is the thread running?

Static Public Member Functions

static DMMClass * create_protocol (std::string protocolName)
 Create an instance of the given protocol.
static int num_protocols ()
 Return number of known protocols.
static Protocol protocol (int i)
 Return protocol description.
static std::string print_protocols ()
 Return list of known protocol names separated by '
'.
static std::string print_devices ()
 Return list of known devices separated by '
'.
static bool has_device (const std::string &deviceName)
 Test if the devicename is known.
static Device get_device (const std::string &deviceName)
 Get device description.
static std::string html_device_table ()
static std::string device_table ()

Protected Member Functions

virtual void run ()=0
 The main loop.
int readData (Port *port, unsigned char *buffer, int syncByte, int minLen, int maxLen) const
void addValue (double value, int index)
virtual Port::Error open_impl (const std::string &config)=0
 Open the port (the real thing).

Protected Attributes

time_t m_openTime
 Seconds since epoch when port was opened. This is needed for the timeout.
bool m_hasValue
 Set to true if a valid value has been read.
int m_numValues
 Stores the number of values this multimeter provides.
bool m_overflow
 Set to true if an overflow happened (And clear if the overflow condition is gone).
bool m_lowBat
 Set true if multimeter indicates low battery state.
Mutex m_mutex
 Hold this mutex when reading or writing values.
std::string m_mode [8]
 The mode.
std::string m_unit [8]
 The unit.
double m_value [8]
 The value.
bool m_consoleLogging
bool m_run
pthread_t m_pthread

Static Protected Attributes

static Protocol s_protocol []
static Device s_device []

Static Private Member Functions

static int count_protocols ()

Classes

class  Device
 Information structure for a multimeter device. More...
class  Protocol
 Information structure for a multimeter protocol. More...

Detailed Description

Base class for a Multimeter class (Protokoll version).

DMMClass is the base class for a multimeter type. It provides the API to the multimeter. It is a thread that has to countinuously read the value(s) from the multimeter. Another thread can retrieve the last values from the multimeter by calling the member function value including unit and mode.

How to create a new protocol

Create a class derived from DMMClass. This new class is responsible for reading and decoding of the data sent by the multimeter.

Most probably the device is connected through a serial port (or USB serial). Use the SerialPort class to handle the serial port. If you have special needs it's a good idea to create a new subclass of Port for this purpose.

Implement: open_impl, close and run.

Implement a static create function (DMMClass *create( void ))

See also:
Metex14BytesPolling::create, Metex14BytesContinuous::create, Metex15BytesContinuous::create, VC820::create, M9803R::create ...
Include the headerfile of your class in the file dmmclass.cpp and add the new protocol to the array s_protocol.

See also:
value, mode and unit

Definition at line 56 of file dmmclass.h.

Constructor & Destructor Documentation

DMMClass::DMMClass (   )


Definition at line 117 of file dmmclass.cpp.

DMMClass::~DMMClass (   )  [virtual]


Definition at line 126 of file dmmclass.cpp.

Member Function Documentation

void DMMClass::addValue (  double  value,
int  index
)  [protected]


Definition at line 156 of file dmmclass.cpp.

References m_value.

Referenced by VC820::run(), PeakTech10Ascii::run(), M9803R::run(), GDM703::setAscii(), and MetexAscii::setMetexAscii().

virtual Port::Error DMMClass::close (   )  [pure virtual]


Close the port.

Implemented in Escort97, GDM703, M9803R, MetexAscii, PeakTech10Ascii, and VC820.

int DMMClass::count_protocols (   )  [static, private]


Definition at line 219 of file dmmclass.cpp.

References s_protocol.

Referenced by num_protocols().

DMMClass * DMMClass::create_protocol (  std::string  protocolName  )  [static]


Create an instance of the given protocol.

Parameters:
[in] protocolName Name of the protocol. Currently implemented are:
NameProtocol class
M14PMetex14BytesPolling
M14CMetex14BytesContinuous
M15CMetex15BytesContinuous
VC820VC820
M9803RM9803R
IOCBIOCBUVMonitor
PT10APeakTech10Ascii
GDM703GDM703
ESC97Escort97
Returns:
Pointer to new instance of the requested protocol or 0 if the protocol is unknown

Definition at line 199 of file dmmclass.cpp.

References DMMClass::Protocol::createFunction, num_protocols(), and s_protocol.

std::string DMMClass::device_table (   )  [static]


Return table with information about all known devices

Definition at line 295 of file dmmclass.cpp.

References DMMClass::Device::brand, DMMClass::Device::name, numValues(), DMMClass::Device::port, and s_device.

DMMClass::Device DMMClass::get_device (  const std::string &  deviceName  )  [static]


Get device description.

Parameters:
deviceName Name of the device ("Voltcraft ME-32")
Returns:
Device description

Definition at line 278 of file dmmclass.cpp.

References DMMClass::Device::brand, DMMClass::Device::name, numValues(), and s_device.

bool DMMClass::has_device (  const std::string &  deviceName  )  [static]


Test if the devicename is known.

Parameters:
deviceName Name of the device ("Voltcraft ME-32")
Returns:
true if device is known

Definition at line 260 of file dmmclass.cpp.

References DMMClass::Device::brand, DMMClass::Device::name, numValues(), and s_device.

bool DMMClass::hasValue (   )  [inline]


Do we have a measurement already?

Returns:
true if something was measured

Definition at line 121 of file dmmclass.h.

References m_hasValue, and m_mutex.

std::string DMMClass::html_device_table (   )  [static]


Return HTML table with information about all known devices

Definition at line 355 of file dmmclass.cpp.

References DMMClass::Device::brand, DMMClass::Device::name, numValues(), DMMClass::Device::port, and s_device.

bool DMMClass::lowBat (   )  [inline]


Battery is low.

The Implementation of the multimeter class has to take care of this.

Definition at line 133 of file dmmclass.h.

References m_lowBat, and m_mutex.

std::string DMMClass::mode (  int  i = 0  )


The current measurement mode.

The specific implementation must set these to one of the following (The GUI QtDMM depends on this).

DCA DC measurement [V or A]
ACA AC measurement [V or A]
OHResistance [Ohm]
DIDiode "Sperrspannung" (Translators please) in V
CACapacity [Farad]
INInductance [Henry]
TETemperature [C or F]
FRFrequency [Hz]

Parameters:
[in] i Index of value [0-7]

Definition at line 144 of file dmmclass.cpp.

References m_mode, and m_mutex.

int DMMClass::num_protocols (   )  [static]


Return number of known protocols.

Definition at line 212 of file dmmclass.cpp.

References count_protocols().

Referenced by create_protocol().

int DMMClass::numValues (   )  [inline]


Return number of values this partucular multimeter provides.

Some multimeter may have more than on value. This class supports up to 8 values.

Returns:
The number of avail values

Definition at line 85 of file dmmclass.h.

References m_numValues.

Referenced by device_table(), get_device(), has_device(), html_device_table(), and print_devices().

Port::Error DMMClass::open (  const std::string &  config  )


Open the port.

See also:
Description of the parameter config can be found in the Port description

Definition at line 130 of file dmmclass.cpp.

References m_openTime, and open_impl().

virtual Port::Error DMMClass::open_impl (  const std::string &  config  )  [protected, pure virtual]


Open the port (the real thing).

See also:
Description of the parameter config can be found in the Port description

Implemented in Escort97, GDM703, M9803R, MetexAscii, PeakTech10Ascii, and VC820.

Referenced by open().

bool DMMClass::overflow (   )  [inline]


An overflow happened.

The Implementation of the multimeter class has to take care of this.

Definition at line 127 of file dmmclass.h.

References m_mutex, and m_overflow.

std::string DMMClass::print_devices (   )  [static]


Return list of known devices separated by '
'.

Definition at line 244 of file dmmclass.cpp.

References DMMClass::Device::brand, DMMClass::Device::name, numValues(), and s_device.

std::string DMMClass::print_protocols (   )  [static]


Return list of known protocol names separated by '
'.

Definition at line 228 of file dmmclass.cpp.

References DMMClass::Protocol::menuText, DMMClass::Protocol::name, and s_protocol.

static Protocol DMMClass::protocol (  int  i  )  [inline, static]


Return protocol description.

Parameters:
i Index of the protocol must be smaller than num_protocols())
Returns:
Protocol description

Definition at line 221 of file dmmclass.h.

References s_protocol.

void Thread::quit (   )  [inherited]


Forcibly stop thread.

Not recommended as this might leak resources

Definition at line 52 of file thread.cpp.

int DMMClass::readData (  Port *  port,
unsigned char *  buffer,
int  syncByte,
int  minLen,
int  maxLen
)  const [protected]


Helper function. Read data from the given port.

Parameters:
[in] port The Port to read from
[out] buffer The data is copied into this buffer. Make shure that it is big enough to hold at least maxLen bytes.
[in] syncByte Stop reading when the sync byte has been read (and at least minLen bytes have been read.
[in] minLen Read at least minLen bytes
[in] maxLen Abort reading if maxLen bytes have been read without the occurence of the syncByte
Returns:
The number of bytes read or -1 if reading failed

Definition at line 167 of file dmmclass.cpp.

References m_consoleLogging, Port::Ok, and Port::readByte().

Referenced by MetexAscii::run(), M9803R::run(), GDM703::run(), and Escort97::run().

virtual void DMMClass::run (   )  [protected, pure virtual]


The main loop.

Continuously read the multimeter here (And do whatever is needed to make the multimeter send values [polling]). New values have to be filled into m_value, m_mode and m_unit. Hold the mutex while doing so.

Example:

  ... we assume a 14 byte protocol ...

  unsigned char buffer[64];

  while (m_run)
  {
    int cnt = readData( buffer );

    if (-1 != cnt)
    {
      unsigned char *byte = buffer+cnt-14;

      ... decode the raw multimeter data ...

      m_mutex.lock();
      m_value[0] = ...
      m_unit[0] = ...
      m_mode[0] = ...
      m_hasValue = true;
      m_mutex.unlock();
    }
  }
See also:
m_value, m_unit and m_mode

Implements Thread.

Implemented in Escort97, GDM703, M9803R, MetexAscii, PeakTech10Ascii, and VC820.

bool Thread::running (   )  const [inline, inherited]


Is the thread running?

Definition at line 62 of file thread.h.

References Thread::m_run.

void DMMClass::setConsoleLogging (  bool  on  )  [inline]


Definition at line 135 of file dmmclass.h.

References m_consoleLogging.

void DMMClass::setNumValues (  int  num  )  [inline]


Set number of values this partucular multimeter provides.

Some multimeter may have more than on value. This class supports up to 8 values.

Parameters:
[in] num Number of parameter of this device

Definition at line 78 of file dmmclass.h.

References m_numValues.

Referenced by Escort97::Escort97(), and GDM703::GDM703().

int Thread::start (   )  [inherited]


Start the thread.

Returns:
pthread_create return code

Definition at line 39 of file thread.cpp.

References Thread::m_pthread, Thread::m_run, and Thread::start_thread().

Referenced by MetexAscii::MetexAscii(), MetexAscii::run(), and GDM703::run().

void Thread::stop (   )  [inline, inherited]


Gracefully stop the thread.

Definition at line 54 of file thread.h.

References Thread::m_run.

bool DMMClass::timeout (   )  const


Check if there was a timeout.

If the multimeter didn't send data for 5 seconds this goes true

Definition at line 137 of file dmmclass.cpp.

References m_hasValue, and m_openTime.

std::string DMMClass::unit (  int  i = 0  )


String representation of the unit.

Example: V, mV, uV, A, uA, nF, mH, MOhm, kOhm.

Parameters:
[in] i Index of value [0-7]

Definition at line 150 of file dmmclass.cpp.

References m_mutex, and m_unit.

double DMMClass::value (  int  i = 0  )


The measured value.

Parameters:
[in] i Index of value [0-7]

Definition at line 161 of file dmmclass.cpp.

References m_mutex, and m_value.

Referenced by PeakTech10Ascii::run(), GDM703::setAscii(), and MetexAscii::setMetexAscii().

void Thread::wait (   )  [inherited]


Wait for the thread to finish (no timeout!).

Definition at line 47 of file thread.cpp.

References Thread::m_pthread.

Member Data Documentation

bool DMMClass::m_consoleLogging [protected]


Definition at line 265 of file dmmclass.h.

Referenced by readData(), and setConsoleLogging().

bool DMMClass::m_hasValue [protected]


Set to true if a valid value has been read.

Definition at line 250 of file dmmclass.h.

Referenced by hasValue(), VC820::run(), PeakTech10Ascii::run(), MetexAscii::run(), M9803R::run(), GDM703::run(), GDM703::setAscii(), MetexAscii::setMetexAscii(), and timeout().

bool DMMClass::m_lowBat [protected]


Set true if multimeter indicates low battery state.

Definition at line 256 of file dmmclass.h.

Referenced by lowBat(), and VC820::run().

std::string DMMClass::m_mode[8] [protected]


The mode.

See also:
mode

Definition at line 260 of file dmmclass.h.

Referenced by mode(), VC820::run(), PeakTech10Ascii::run(), M9803R::run(), GDM703::setAscii(), and MetexAscii::setMetexAscii().

Mutex DMMClass::m_mutex [protected]


Hold this mutex when reading or writing values.

Definition at line 258 of file dmmclass.h.

Referenced by hasValue(), lowBat(), mode(), overflow(), VC820::run(), PeakTech10Ascii::run(), M9803R::run(), GDM703::setAscii(), MetexAscii::setMetexAscii(), unit(), and value().

int DMMClass::m_numValues [protected]


Stores the number of values this multimeter provides.

Definition at line 252 of file dmmclass.h.

Referenced by numValues(), MetexAscii::run(), and setNumValues().

time_t DMMClass::m_openTime [protected]


Seconds since epoch when port was opened. This is needed for the timeout.

Definition at line 248 of file dmmclass.h.

Referenced by open(), and timeout().

bool DMMClass::m_overflow [protected]


Set to true if an overflow happened (And clear if the overflow condition is gone).

Definition at line 254 of file dmmclass.h.

Referenced by overflow(), M9803R::run(), GDM703::setAscii(), and MetexAscii::setMetexAscii().

pthread_t Thread::m_pthread [protected, inherited]


Definition at line 66 of file thread.h.

Referenced by Thread::start(), and Thread::wait().

bool Thread::m_run [protected, inherited]


Definition at line 65 of file thread.h.

Referenced by VC820::run(), PeakTech10Ascii::run(), MetexAscii::run(), M9803R::run(), GDM703::run(), Escort97::run(), Thread::running(), Thread::start(), and Thread::stop().

std::string DMMClass::m_unit[8] [protected]


The unit.

See also:
unit

Definition at line 262 of file dmmclass.h.

Referenced by VC820::run(), PeakTech10Ascii::run(), M9803R::run(), GDM703::setAscii(), MetexAscii::setMetexAscii(), and unit().

double DMMClass::m_value[8] [protected]


The value.

See also:
value

Definition at line 264 of file dmmclass.h.

Referenced by addValue(), and value().

DMMClass::Device DMMClass::s_device [static, protected]


Definition at line 268 of file dmmclass.h.

Referenced by device_table(), get_device(), has_device(), html_device_table(), and print_devices().

DMMClass::Protocol DMMClass::s_protocol [static, protected]


Initial value:


{
  Protocol( &Metex14BytesPolling::create, "M14P", "Metex 14 bytes ASCII polling" ),
  Protocol( &Metex14BytesContinuous::create, "M14C", "Metex 14 bytes ASCII continuous" ),
  Protocol( &Metex15BytesContinuous::create, "M15C", "Metex 15 bytes ASCII continuous" ),
  Protocol( &VC820::create, "VC820", "VC820 14 bytes binary continuous" ),
  Protocol( &M9803R::create, "M9803R", "M9803R 12 bytes binary continuous" ),
  Protocol( &IOCBUVMonitor::create, "IOCB", "IOCB UV Monitor" ),
  Protocol( &PeakTech10Ascii::create, "PT10A", "Peaktech 11 bytes ASCII" ),
  Protocol( &GDM703::create, "GDM703", "GDM703 26 bytes binary continuous" ),
  Protocol( &Escort97::create, "ESC97", "Escort 97 binary continuous" ),

  Protocol( 0, "", "" )
}

Definition at line 267 of file dmmclass.h.

Referenced by count_protocols(), create_protocol(), print_protocols(), and protocol().

The documentation for this class was generated from the following files:
Generated on Mon Jan 22 23:24:18 2007 for cdmm by  doxygen 1.4.6
